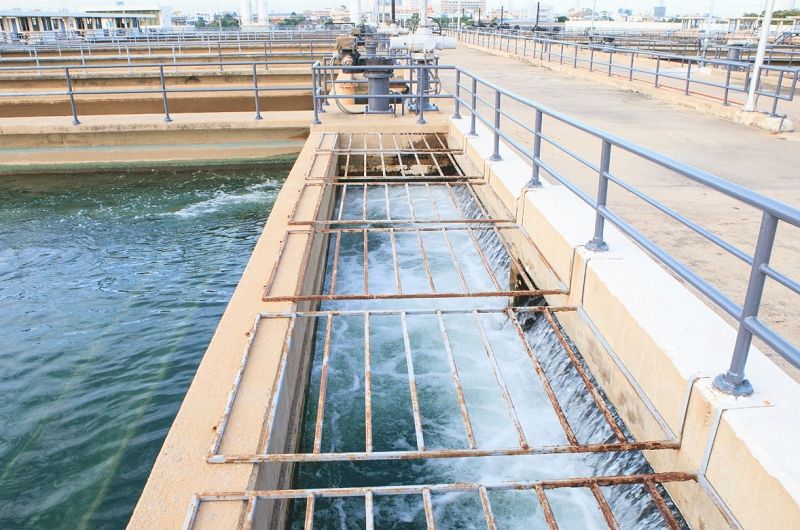

sensa y’obutambuzi ku yintaneeti, ng’ekozesa obusannyalazo bwa platinum obw’obulongoofu obw’ekika ekya waggulu/empeta nga bulina okuliyirira ebbugumu erya Pt1000, ennyumba etayingiramu mazzi eya IP68 ne RS485 (Modbus-RTU) digital output. Ewa stable linear response, anti-polarization ne anti-fouling performance, ideal for real-time monitoring of conductivity & total dissolved solids (TDS) mu mazzi amayonjo, amazzi ga boiler, amazzi agatonnya agatambula, amazzi amakyafu ag’amakolero n’amazzi g’ennyanja. Kisobola okukwatagana obulungi ne PLC, DCS ne MTWCON5300 conductivity controller, nga erina optional isolated 4–20mA analog output.

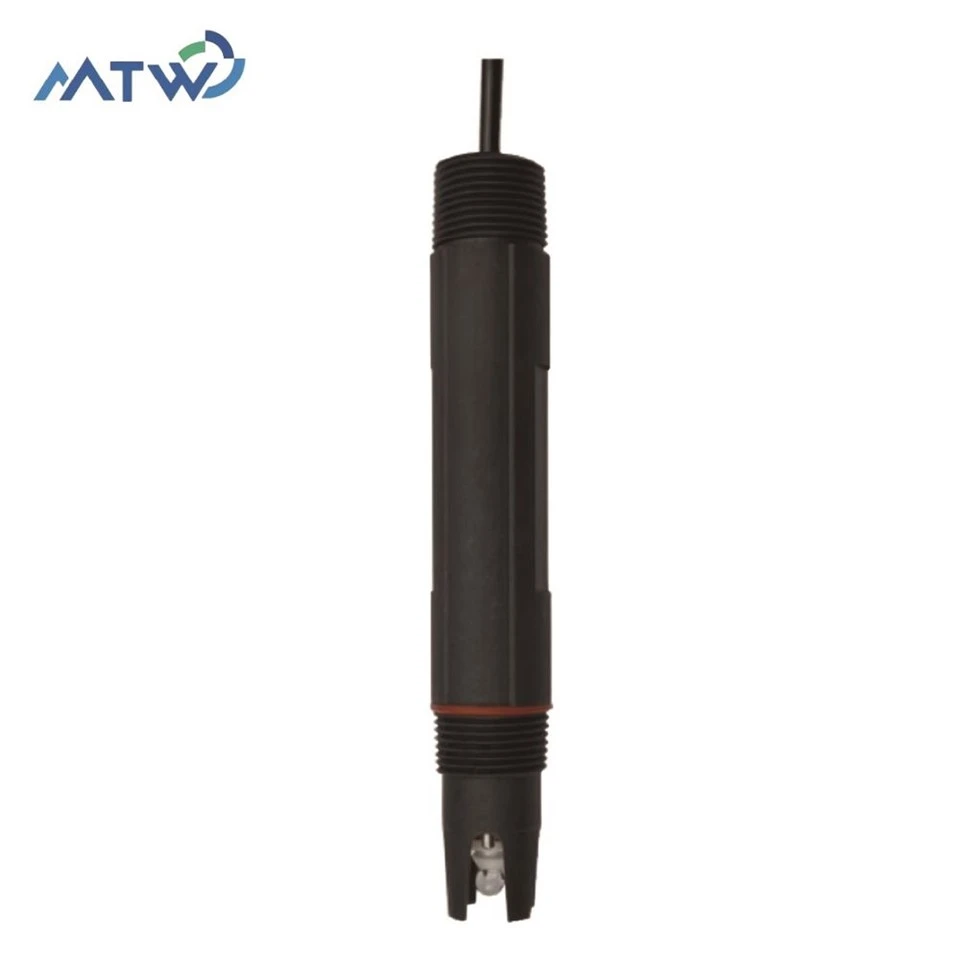

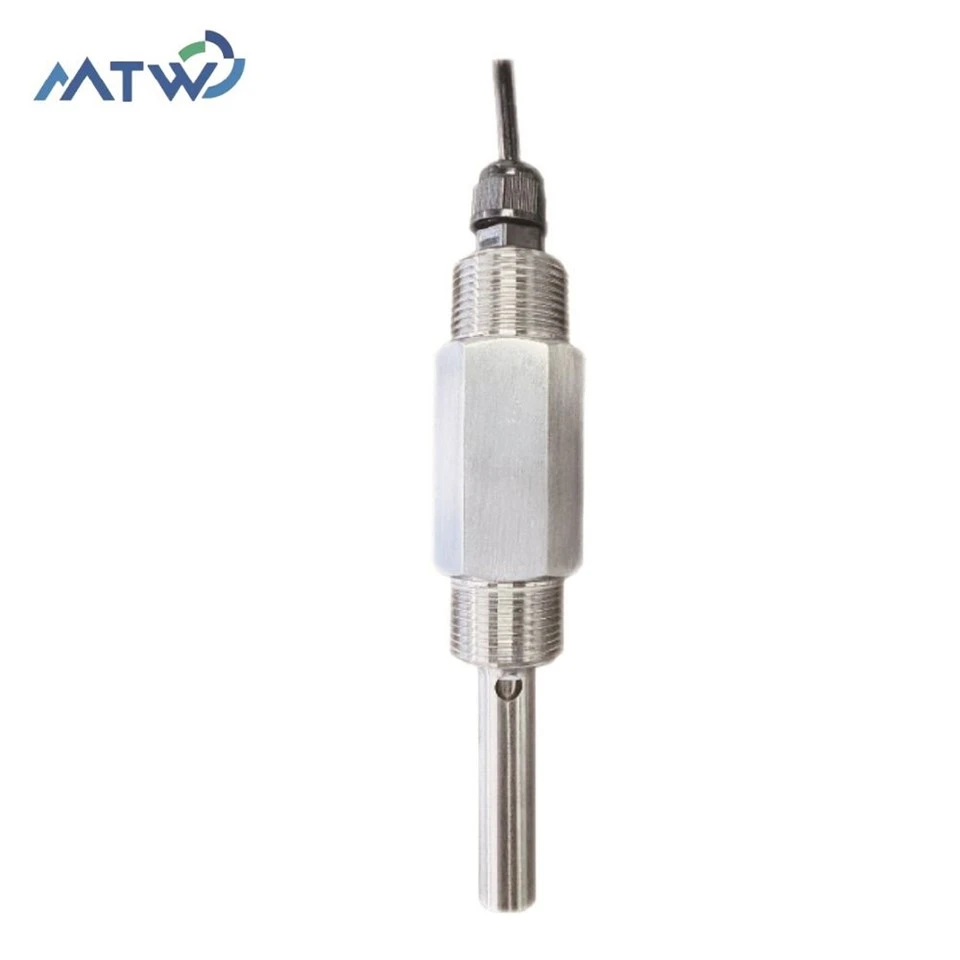

MTW-ECPt Series Platinum-Cell Conductivity Probe ye nkola ey’okupima obutambuzi bw’amakolero ku yintaneeti eyeesigika ennyo, eyakolebwa okukola obutasalako mu mbeera z’amazzi amayonjo okutuuka ku makolero amakambwe. Ekozesa obusannyalazo bwa platinum obw’obulongoofu obw’amaanyi (99.99% Pt) mu 2-pole (ku low-to-mid conductivity) ne 4-pole (ku ultra-low & high conductivity, anti-polarization) configurations; obutakyukakyuka bw’obutoffaali buliwo mu K=0.01 (amazzi amayonjo ennyo), K=0.1 (amazzi amayonjo), K=1.0 (amazzi amakolero aga bulijjo), K=10 (amazzi amakyafu ag’omunnyo omungi/amazzi g’ennyanja) okubikka ekisengejjo ky’okupima ekijjuvu.
The built-in high-precision Pt1000 temperature probe enables automatic temperature compensation (0–80℃), complying with the IEC 60746 standard temperature reference (25℃). The housing is made of corrosion-resistant PPS/PEEK and 316L stainless steel with anti-fouling surface treatment, supporting long-term submersion or flow-through installation with 3/4" NPT standard thread. The 4-pole design effectively eliminates cable resistance, electrode polarization and fringe field errors, ensuring stable readings in high conductivity (>100 mS/cm) oba obutambuzi obutono (<0.1 μS/cm) media.
Ewagira okupima ensonga emu/2{2}}ensonga n'ebigonjoola ebya KCl ebya bulijjo, erina amaanyi ga data ag'okupima-okuggyako okutereka n'emirimu gy'okuzuula ensobi. Module ya platinum electrode ekoleddwa okumala ebbanga eddene ng’ekola, nga kyetaagisa okuddaabiriza okutono bw’ogeraageranya n’ebyuma ebikuba ebyuma. Standard RS485 Modbus-Empuliziganya ya RTU, obusobozi obw’amaanyi obuziyiza amasannyalaze okuyingirira, ekwatagana n’enkola z’okulondoola amakolero eza bulijjo.
Ebipimo by’Ebyekikugu
|

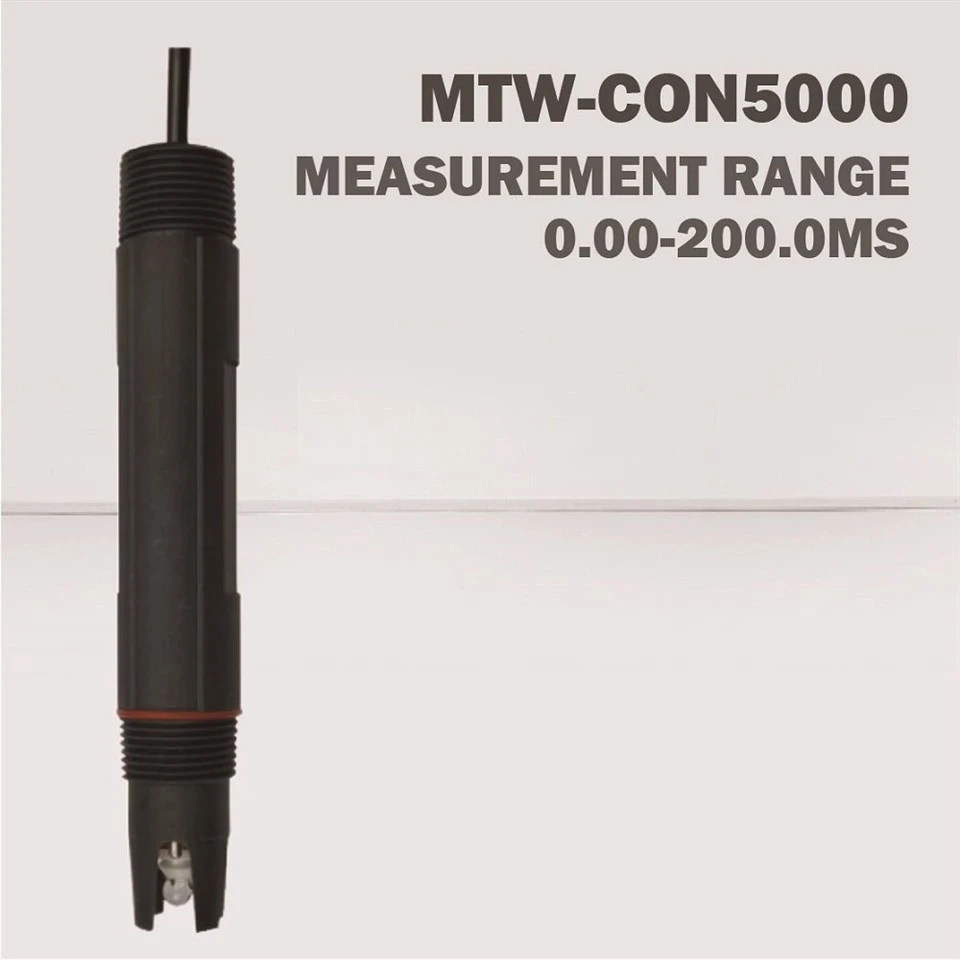

Obuwanvu bw’okupima |
0.00-200.0mS |
|
Ensalawo |
0.01uS .1uS1uS.1mS(okusinziira ku bbanga ery'enjawulo) |
|
Tuufu |
±2%F.S. |
|
Enkola y’okuliyirira ebbugumu |
Ebbugumu erya otomatiki |
|

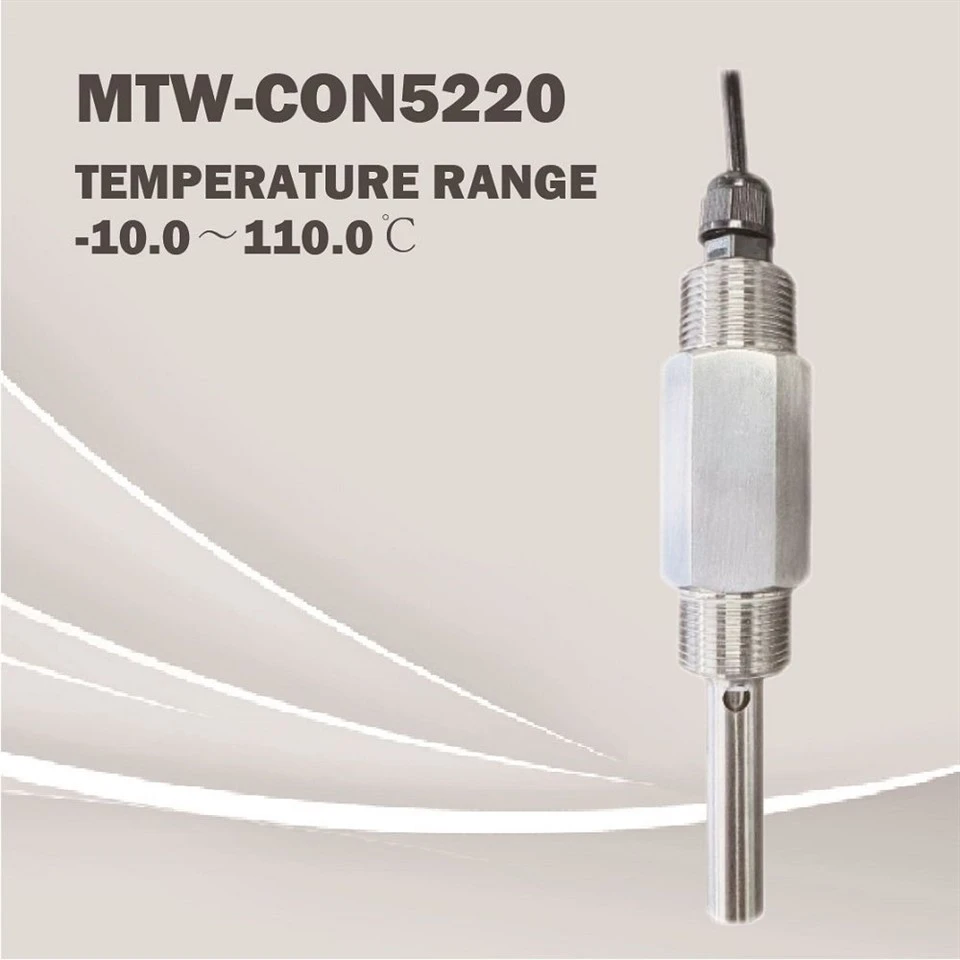

Ensengekera y’okupima ebbugumu |
-10.0 ~ 110.0 diguli |
|
Ebbugumu ly’okukola |
0 ~ 60 diguli |
|
Omugerageranyo gw’okuliyirira ebbugumu |
0.0 ~ 10.0% esobola okutegekebwa |
|

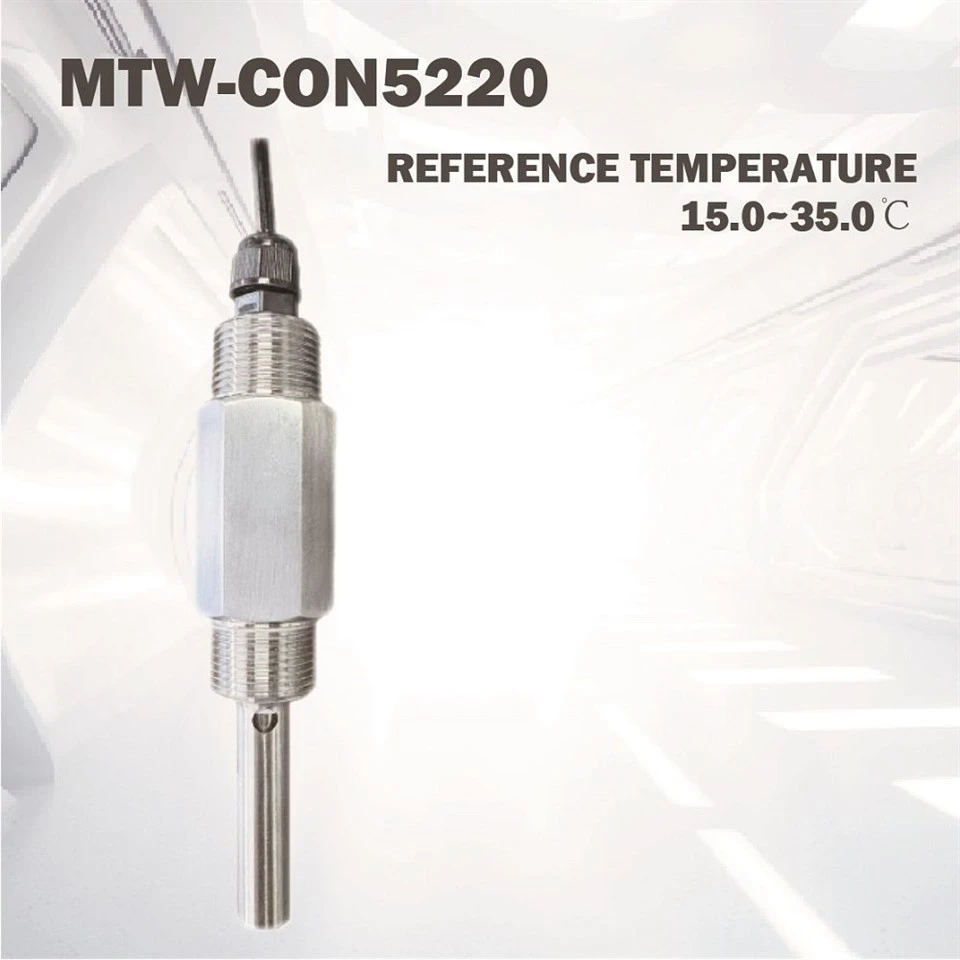

Ekiwandiiko Ebbugumu |
15.0 ~ 35.0 diguli etegekeddwa |
|
Obuuma obutambuza obusannyalazo Constant |
0.01,0.1,1,10.0 esobola okutegekebwa |
|

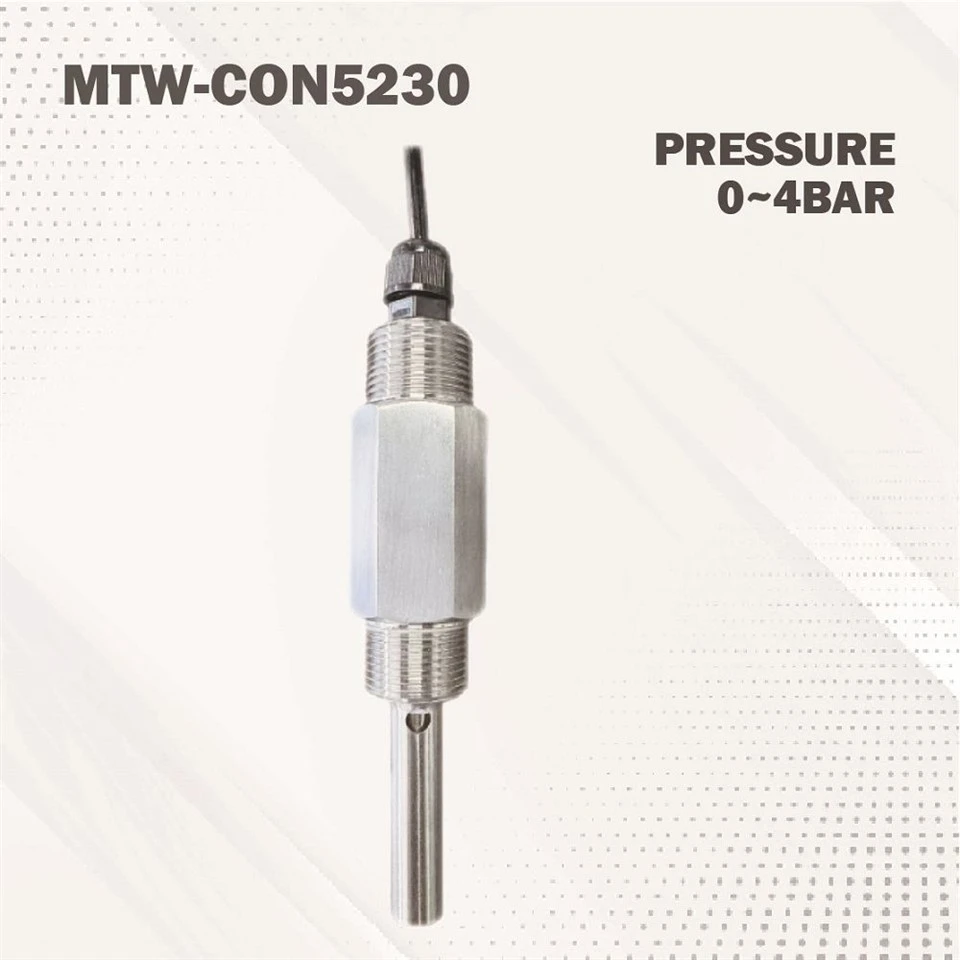

Puleesa |
0 ~ 4bar |
Ebipimo by’Eby’Omubiri n’Engeri y’Amasannyalaze
1.Obutambuzi K=1, K=10, K=0.1, K=0.01 zikolebwa mu bintu bya PPS (ebisobola okulongoosebwa)
2.3/4-inch emiguwa mu maaso n'emabega okusobola okwanguyirwa okugiteeka mu kifo.
3.2 emiguwa gy’amasannyalaze ne layini za siginiini 2 eza RS-485.
4.12-24V DC amasannyalaze, nga amaanyi gakyukakyuka range ya ±10% ne 2000V isolation.
Obusannyalazo bwa Digital obutambuzi
Ebintu Ebikwata ku Bikozesebwa
1.Power supply ne output isolation design okukakasa obukuumi bw'amasannyalaze
2.Ezimbiddwa-mu circuits ez'obukuumi mu chips z'amasannyalaze n'empuliziganya, ezirimu obusobozi obw'amaanyi obuziyiza-okutaataaganyizibwa
3.Adopting comprehensive protection circuit design, okusobozesa okukola okwesigika awatali kwetaaga kwongera ku byuma byawula
4.The circuit ezimbiddwa mu electrode, ekivaamu okugumiikiriza obulungi obutonde n'okuteekebwako n'okukola okwangu
5.RS-485 enkolagana y'okutambuza, MODBUS-RTU empuliziganya protocol, ewagira empuliziganya ey'engeri bbiri n'okusembeza ekiragiro okuva ewala
6.The empuliziganya protocol nnyangu, nkola, era extremely nnyangu okukozesa
7.Outputs ebisingawo electrode diagnostic information, okugifuula amagezi
8.Ezimbiddwa-mu jjukira ery'omunda, esobola okukuuma amawulire agaterekeddwa okupima n'okuteekawo ne bwe gaba nga amasannyalaze gagwa
Okukozesa Ebintu
